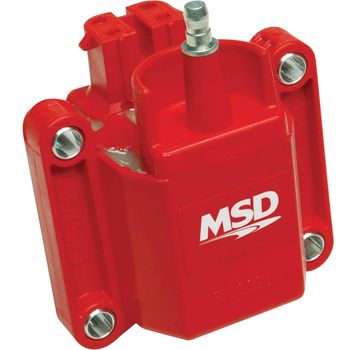

Top off your GM Ignition system with these great new replacement coils. The GM Coils have MSD performance in factory style housings! MSD designed these Coils by combining our Blaster Coil experience with E-core coil efficiency. Each coil has a unique turns ratio plus there is lower primary resistance than the stock coil. This all amounts to a bolt-in replacement coil that produces more output voltage. The Coils will work with stock ignition systems as well as MSD equipped cars and trucks.


Features:
Direct performance replacement for GM dual connector coil
100:1 turns ratio and lower primary resistance produce high voltage output
Works with stock ignition as well as MSD Ignitions

Specifications:
Inductance    5.6 mH
Maximum Voltage    44,000 Volts
Peak Current    220 mA
Primary Resistance    .68 OHMs
Product Type    Ignition Coils
Secondary Resistance    4.8K OHMs
Spark duration    300 uS
Turns Ratio    100:1
Part Number    8226
