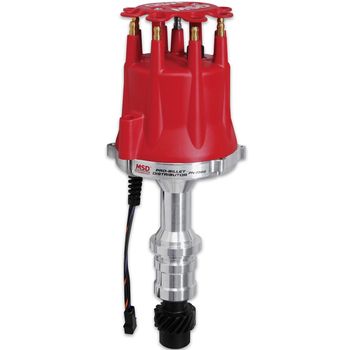

Fits Olds 260, 307, 330, 350, 400, 403, 425 and 455. Must be used with an MSD 6, 7 or 8-series ignition.

Sharing the CNC machining techniques with the rest of the MSD Distributor line, the Olds housing is machined from high quality 6061-T6 aluminum. Adding to this strength are two sealed ball bearings that guide the 0.500" shaft accurately through 10,000+ rpm.

TIG-welded on top of the polished steel shaft is MSD's adjustable mechanical advance assembly. To accurately trigger the ignition, a high-output magnetic pick-up is bolted to the base. This trigger pick-up produces a precise trigger signal. An MSD red cap with brass terminals and Race Rotor are supplied.

Features:
CNC machined billet aluminum housing and billet aluminum base
Will not accept a vacuum advance canister
Must be used with an MSD Ignition Control
Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
Nylon pads ensure smooth operation of the advance weights
Advance weight pins are staked and tig welded to the plate
Mechanical advance assembly can be locked out for crank trigger systems
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Polished steel shaft is QPQ coated and guided by two sealed ball bearings
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
Easy-to-adjust mechanical advance with supplied springs and stop bushings
