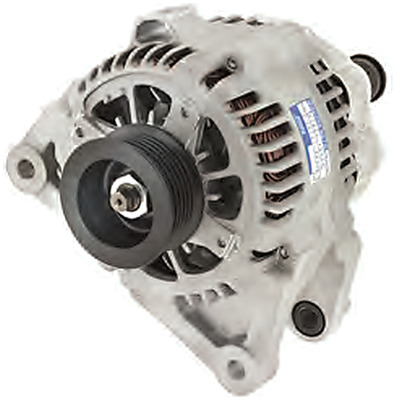

12V 130A replacement alternator for selected Hyundai iLoad TQ models with the 2.4L G4KG petrol engine. Features a 60mm six-rib pulley and 158mm mounting centres.

Technical Specifications

• Brand: Jaylec
• Part number: 65-8510-2
• System voltage: 12V
• Rated output: 130A
• Adjustment fixing: 2 × 10mm, 2 × M10
• Pivot fixing: 2 × 10mm, 2 × M10
• Adjustment-to-pivot centres: 2 × 158mm
• Inside-foot / pivot-lug measurement: 2 × 57mm
• Pulley diameter: 60mm
• Pulley profile: 6PV

Part Number Cross-References

Cross-reference part numbers:

• 37300-2C110, 37300-2C300, A0002606253

Vehicle & Equipment Applications

• Hyundai iLoad TQ — 2.4L G4KG petrol, from 2008; confirm the original alternator for the vehicle build date.
• Selected Hyundai iMax 2.4L G4KG petrol installations — match the original 130A alternator reference, pulley and connector.
