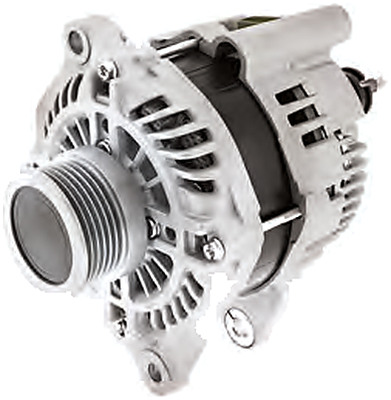

12V 130A replacement alternator for selected Mitsubishi ASX and Outlander diesel models with 4N13 or 4N14 engines. Features a six-rib 60mm pulley and 170mm mounting centres.

Technical Specifications

• Part number: 65-6794
• Brand: Jaylec
• Voltage: 12V
• Rated output: 130A
• Adjustment mounting hole(s): 1 x 12
• Pivot mounting hole(s): 2 x 10
• Adjustment-to-pivot centres: 170 mm
• Pivot span / lug length: 59 mm
• Pulley diameter: 60 mm
• Pulley section: 6PV
• Weight: 8.0 kg

Part Number Cross References

Match the complete original part number and installation details before ordering.

• 1800A271, 1800A334, 1800A431, A002TX1081A, A002TX1081B, A002TX5781, A2TX1081A, A2TX1081B
• A2TX5781

Vehicle & Equipment Applications

Match the specified vehicle, engine and build range. Where no final year is listed, confirm the particular vehicle before ordering.

• Mitsubishi · ASX · GA6W, XA, XB · 1.8 DI-D · 4N13 · Diesel · from 2010 (catalogue does not specify final year)
• Mitsubishi · ASX · GA8W, XB, XC · 2.2 Di-D 4WD · 4N14 · Diesel · from 2013 (catalogue does not specify final year)
• Mitsubishi · Outlander III · GF6W, ZJ, ZK, ZL · 2.2 Di-D AWD (GF6W) · 4N14 · Diesel · from 2012 (catalogue does not specify final year)

Related air filters: K&N 33-2050-1 is a shared-vehicle reference for selected ASX 1.8L diesel factory airboxes (including 2012). Confirm the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
