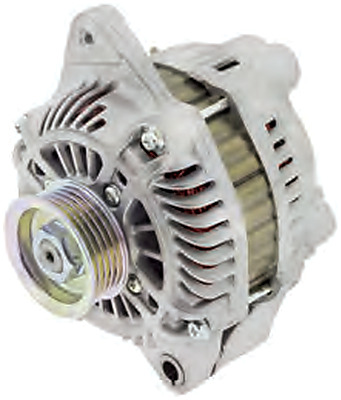

Jaylec Alternator 12V 80A for Suzuki Grand Vitara JT & Swift MZ EZ (65-6685)


Jaylec Alternator 12V 80A for Suzuki Grand Vitara JT & Swift MZ EZ (65-6685) - NZ Air Filter

In stock

Price:  NZD $330.52 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

12V 80A replacement alternator for selected Suzuki Grand Vitara JT 2.0L J20A and Swift MZ/EZ 1.6L M16A petrol models. Features a 56mm five-rib pulley and 164mm mounting centres.

Selection & Installation Note: Match the original number, five-rib pulley and J20A or M16A engine application. Compare the 164mm mounting centres and 58mm internal span.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-6685
  • Voltage: 12V
  • Output: 80A
  • Adjustment hole: 1 x M8
  • Pivot hole: 1 x 10 mm
  • Adjustment-to-pivot centres: 164 mm
  • Inside foot-to-foot / pivot lug length: 58 mm
  • Pulley diameter: 56 mm
  • Pulley type: 5PV
  • Weight: 6.0 kg

Part Number Cross References

  • A005TG0291
  • A5TG0291
  • 31400-65J10

Vehicle & Equipment Applications

  • Suzuki Grand Vitara JT — 2.0L J20A petrol, 2005–2008.
  • Suzuki Swift MZ/EZ — 1.6L M16A petrol, 2005–2008.

Related air filters: K&N 33-2826 is listed for Swift 1.6L petrol, including 2007; 33-2361 is listed for Grand Vitara 2.0L petrol, including 2007. Select the filter for the correct vehicle airbox. Check the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
