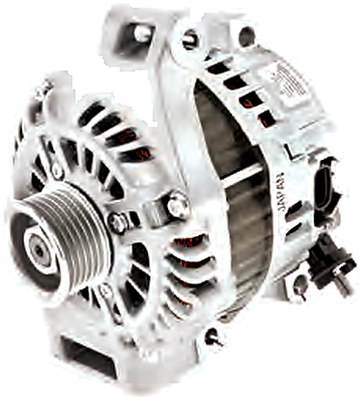

12V 110A replacement alternator for selected Mazda 3 BL models with the LFDE 2.0L petrol engine. Features ECU-controlled charging and a six-rib 49mm pulley.

Technical Specifications

• Part number: 65-6640-2
• Brand: Jaylec
• Voltage: 12V
• Rated output: 110A
• Adjustment mounting hole(s): 2 x 8, 2 x 10
• Pivot mounting hole(s): 2 x 8, 2 x 10
• Pivot span / lug length: 2 x 45, 2 x 75 mm
• Pulley diameter: 49 mm
• Pulley section: 6PV
• Weight: 7.5 kg
• Regulator / control: ECU controlled

Part Number Cross References

Match the complete original part number and installation details before ordering.

• A002TJ0791, A003TJ1091, A003TJ3391, A2TJ0791, A3TJ1091, A3TJ3391

Vehicle & Equipment Applications

Match the specified vehicle, engine and build range. Where no final year is listed, confirm the particular vehicle before ordering.

• Mazda · Mazda 3 · BL · 2.0 MZR · LFDE · Petrol · 2009–2014

Related air filters: K&N 33-2293 is listed for US-market Mazda 3 2.0L petrol, including 2010. Other markets may use a different airbox, so confirm the original filter before selecting it. Check the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
