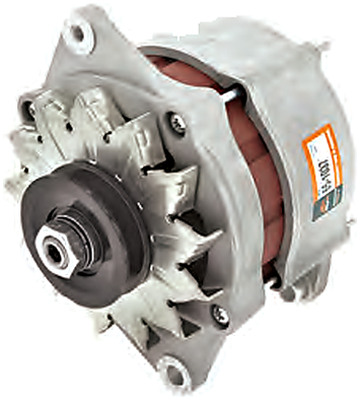

Jaylec Alternator 12V 60A for Holden Astra LB/LC and Nissan Pulsar N10/N12 (65-1037)


Jaylec Alternator 12V 60A for Holden Astra LB/LC and Nissan Pulsar N10/N12 (65-1037) - NZ Air Filter

In stock

Price:  NZD $291.58 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

12V 60A replacement alternator for selected Holden Astra LB/LC and Nissan Pulsar N10/N12 models. Features a 66mm single A-section pulley and 175mm adjustment-to-pivot spacing.

Fitment Note: Compare the 66mm A-section pulley, 81mm inside mounting dimension and plug arrangement with the existing unit. Check the chassis series and original alternator reference as well as the engine capacity; model name alone is insufficient for selection.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-1037
  • Voltage: 12V
  • Amperage: 60A
  • Adjustment hole: 1 x M8
  • Pivot hole: 1 x 10.5 mm
  • Adjustment-to-pivot distance: 175 mm
  • Inside feet / pivot lug dimension: 81 mm
  • Pulley diameter: 66 mm
  • Pulley section: 1A
  • Unit weight: 5.5 kg

Part Number Cross References

Match the original alternator number together with the mounting, pulley and electrical connector.

  • 9 120 600 855, 9 120 600 863, 9 120 600 905, BXD1242A, 23100-H6204, 23100-H7204
  • 23100-H7205, 23100-H7701, 23100-H7703, 23100-P0103, 23100-P4500, 23100-P4501
  • 23100-P4502, 23100-P4503, 23100-U0111, 23100-U0703, 23100-U0704, 23100-U0705
  • 23100-U5000, 23100-U5800, 23100-U5801, 23100-V0102, 23100-V9100, 23100-V9102
  • 23100-V9103, 23100-V9610, 23100-V9625, 23100-V9800

Vehicle and Equipment Applications

  • Holden Astra LB/LC — 1.5L and 1.6L applications, 1984–1987.
  • Nissan Pulsar N10/N12 — 1.3L, 1.4L, 1.5L and 1.6L applications, 1981–1986.
  • Nissan 280ZX HGS130 — 2.8L L28E petrol, 1978–1984; match the listed 60A alternator configuration.
  • Nissan Bluebird 910/W910 — 2.0L L20B petrol, 1980–1985; match the listed 60A alternator configuration.

Related air filters: K&N E-2990 is listed for selected Nissan 280ZX 2.8L petrol applications, 1981–1984. These are air-filter references for the stated vehicles, not alternator interchange numbers. Match the original airbox and filter before ordering.
