EWP80 ALLOY FLANGE COMBO REMOTE ELECTRIC WATER PUMP & CONTROLLER (12V) (PART #8908)

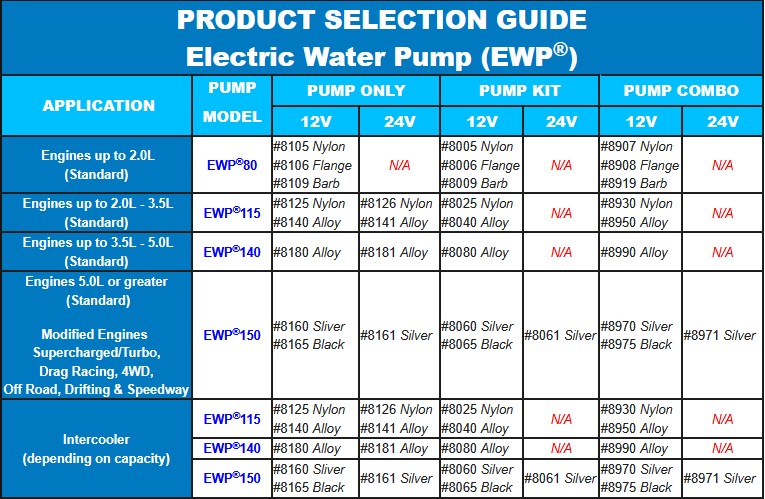

The EWP80 Alloy Flange is available for purchase in following options:
Pump Only (Part #8106)
Kit (Part #8006)
Combo with Controller (Part #8908)

This compact pump is manufactured out of lightweight Aluminium and utilises 6 bolt flange fittings on both the inlet and outlet of the pump for superior fitment flexibility. The provided 35mm (1-3/8”) straight and right-angle push on barb fittings offer convenient fitment in any application.

With a maximum flow rate of 90 l/min (23.8 g/min), 35mm (13/8”) inlet and outlet, arrives in magnificent matt-black, powder-coated finish and offers the same high class, performance, compactness, and style you have come to expect from the world’s largest supplier of remote-mounted electric water pumps and world-beating engine cooling products company, Davies Craig Pty Ltd.

The EWP80 greatly enhances engine cooling control while giving you added power and improved fuel economy. By removing the parasitic power losses of a belt-driven, mechanical water pump the EWP® can provide up to 10kW (13hp) of extra power and increased torque and used extensively in Intercooler applications.

Technical Specifications - EWP80
Operating voltage    12V DC, 16V MAXIMUM
Max Current    7.5A @ 13V
Flow rate (max)    90 L/min (23.8 US gal/min) @ 0 kPA
Maximum Head Height    5.2m (17ft 0.72in)
Operating temp.    -40° to 120°C,(-40° to 248°F)
Fluid Temperatures    -40°c to 120°c, (-40°F to 248°F)
Pump weight    1100 grams (2.43 lb)
Motor Type    Brushed DC Motor
Body Material    Aluminium
Burst pressure    500 kPa (72.52 Psi)
Inlet & Outlet    6 Bolt Flange, 35mm (1-3/8") Push on barb

Hose Fitment    32mm to 38mm, (1¼” to 1½”)

Hose Fitment with 3mm Sleeve #8510 41mm to 44mm (1⅝” to 1¾”)
Hose Fitment with 6mm Sleeve #8511 47mm to 50mm (1⅞” to 2”) *Not included
