OFFICIAL NZ MASTER DISTRIBUTOR — DAVIES CRAIG Fast NZ Delivery: In-stock local inventory dispatched daily via tracked express courier | Full NZ GST Invoice Provided Complete thermal precision with compact 1/8" NPT fluid sensing, IP67 waterproofing, 12V/24V versatility, and 5-second staged dual-fan control. The Davies Craig Digital Thermatic® Fan Switch Kit Gen II (Part #0482 / DC-0482) directly supersedes the older 0448 model. Featuring a solid brass 1/8" NPT threaded thermal sensor, this unit threads directly into engine block ports, intake manifolds, thermostat housings, or inline hose adapters for direct fluid temperature measurement in tight engine bays. What's New & Upgraded in Gen II (#0482 vs #0448) Engineered for extreme performance, heavy towing, 4WD, and motorsport environments: - Compact 1/8" NPT Thermal Fluid Sensor: Threaded brass sensor provides real-time, direct coolant temperature sensing—ideal for tight spaces, Japanese import engines, and custom coolant housings.
- Upgraded IP67 Waterproof Casing: Fully sealed against high-pressure water washdowns, mud, dust, and engine bay grime.
- Faster 5-Second Dual Fan Staging: Fan #1 activates immediately at your set temperature, while Fan #2 engages 5 seconds later (upgraded from 10 seconds on older models) to prevent heavy 60A electrical inrush spikes.
- Expanded Temperature Range (5°C to 110°C / 41°F to 230°F): Push-button target setting with digital memory retention even when the vehicle battery is disconnected.
- Dual LED Segment Display: Real-time digital readout shows actual live coolant temperature and target set point. Toggle easily between Celsius (°C) and Fahrenheit (°F).
- Integrated A/C Override Wires: Includes two manual override signal wires supporting positive (+12V air conditioning compressor clutch) or negative trigger signals to force fans on when A/C is active.
How It Operates - Target Activation: Fan #1 turns on automatically when coolant temperature hits your programmed target set point.
- Staged Second Fan Delay: If operating dual cooling fans, Fan #2 starts 5 seconds after Fan #1 to smooth out alternator load and prevent voltage drops.
- 5°C Cool-Down Hysteresis: Both fans run continuously until coolant temperature drops 5°C (9°F) below your set target, preventing rapid on/off relay chatter.
- Air Conditioning Override: Automatically triggers both fans whenever the A/C system is turned on to maintain sub-condenser cooling.
Sensor Thread Compatibility & Adapter Options Part #0482 includes a 1/8" NPT Threaded Sensor. If your engine setup requires an inline radiator hose adapter or a different thread size, choose from the Gen II family: - Need Direct 1/4" NPT Threaded Sensor? Select Part #0481 (Supersedes #0445).
- Need Radiator Fin Core Probe? Select Part #0480 (Supersedes #0444).
- Need 1/4" NPT Sensor + 35mm Hose Adapter Combo? Select Part #0485 (Supersedes #0435).
- Need 1/4" NPT Sensor + 38mm Hose Adapter Combo? Select Part #0488 (Supersedes #0438).
Guaranteed Fan & Pump Compatibility This controller is compatible with standard 2-wire brushed electric cooling fans, as well as ON/OFF switching control for Davies Craig Electric Water Pumps (EWP®) and Electric Booster Pumps (EBP®): - SPAL "EF" Series Brushed Fans: Fits models EF3500, EF3503, EF3504, EF3506, EF3510, EF3515, EF3516, EF3518, EF3519, EF3524, EF3527, EF3534, EF3535, EF3546, EF3549, EF3571, EF3589, EF3614, EF3615, EF3632, EF3633, EF3634, and EF3646.
- Davies Craig Thermatic® Fans: Fits models DC-0107, DC-0108, DC-0135, DC-0136, DC-0147, DC-0148, DC-0150, DC-0151, DC-0155, DC-0156, DC-0160, DC-0161, DC-0162, DC-0163, DC-0164, DC-0165, DC-0166, and DC-0172.
Technical Specifications - Part Number: 0482 (DC-0482 / DC0482) — Directly Replaces #0448
- Operating Voltage: 12V DC default (12V to 27V max range; 24V compatible by swapping to 24V Relays Part #10534)
- Current Output: Dual 30A continuous per channel (40A max output per channel; 60A total startup capacity)
- Temperature Adjustment Range: 5°C to 110°C (41°F to 230°F)
- Temperature Hysteresis: 5°C (9°F) below set point deactivation
- Sensor Included: 1/8" NPT Male Threaded Thermal Fluid Sensor with 142cm total harness length
- Ingress Protection: IP67 Waterproof & Dustproof Module Casing
- Display Type: Dual LED Segment Screen (Displays live temp & target temp)
- Module Dimensions: 95mm (W) x 65mm (H) x 56mm (D)

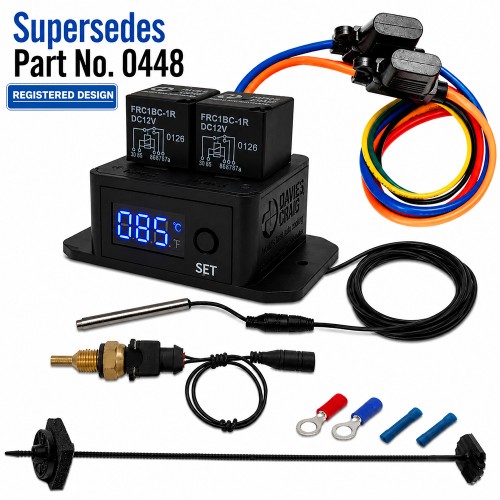

Kit Contents (#0482) - 1x Gen II Digital Thermatic® Fan Switch Control Module (IP67)
- 1x 1/8" NPT Threaded Thermal Fluid Sensor Kit with Cable
- 1x Pre-Terminated Wiring Harness with Integrated Dual 40A 12V Relays & Fuse
- Complete Mounting Hardware (Ring Terminals, Wire Joiners, Self-Tapping Screws)
- Detailed Installation Guide & Wiring Diagram
As the Official NZ Master Distributor for Davies Craig, our technical team is on hand to assist with sensor thread selection, inline hose adapters, or high-flow fan wiring configurations. Contact us today for direct expert support. |
