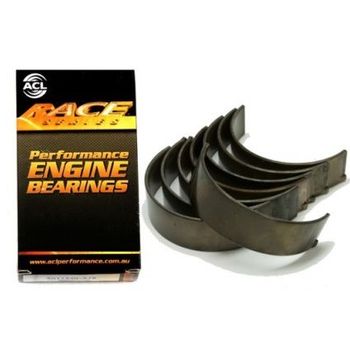

BIG END BEARING SET CHEV 350 (ACL RACE SERIES) 8B663H-010

Conrod Bearing Set

NOTE: for 53.4mm journal

APPLICATION 1:
Engine - Small block 262 OHV 16v
Capacity - 262ci
Cylinders - V8
Bore size - 93.22mm
Stroke - 78.74mnm
Engine code - 262
Make - Chevrolet
Models - Monza, Nova (1975 - 1976)

APPLICATION 2:
Engine - Small block L99 4.3L OHV 16v
Capacity - 265ci
Cylinders - V8
Bore size - 95.25mm
Stroke - 76.20mm
Engine code – L99
Make - Chevrolet
Models - Caprice (1994 - 1996)

APPLICATION 3:
Engine - Small block 267 OHV 16v
Capacity - 267ci
Cylinders - V8
Bore size – 88.90mm
Stroke – 88.49mm
Engine code – 267
Make - Chevrolet
Models – Camaro, Caprice, El Camino, Firebird, Impala, Lemans, Malibu, Monte Carlo, Parisienne etc (1979 – 1982)

APPLICATION 4:
Engine - Small block 302 OHV 16v (Large pin)
Capacity – 302ci
Cylinders - V8
Bore size – 101.60mm
Stroke – 76.20mm
Engine code – 302
Make - Chevrolet
Models – Camaro (1968)

APPLICATION 5:
Engine - Small block 305 5.0L OHV 16v
Capacity – 305ci
Cylinders - V8
Bore size – 94.89mm
Stroke – 88.39mm
Engine code – 305
Make - Chevrolet
Models – Bel Air, Blazer, Bonneville, Camaro, Caprice, Corvette, El Camino, Firebird, Impala, Lemans, Malibu, Monte Carlo, Monza, Nova, Pickup, Starfire, Sunbird (1977 – 2002)

APPLICATION 6:
Engine - Small block 307 OHV 16v
Capacity – 307ci
Cylinders - V8
Bore size – 98.43mm
Stroke – 82.55mm
Engine code – 307
Make - Chevrolet
Models – Bel Air, Bonneville, Chevelle, Camaro, Impala, Pickup etc (1968 – 1973)

APPLICATION 7:
Engine - Small block 327 OHV 16v (Large Pin)
Capacity – 327ci
Cylinders - V8
Bore size – 101.60mm
Stroke – 82.55mm
Engine code – 327
Make - Chevrolet
Models – C Series, Camaro, Caprice, Chevelle, Corvette, El Camino, Impala, K Series (1968 – 1969)

APPLICATION 8:
Engine - Small block 350 OHV 16v
Capacity – 350ci
Cylinders - V8
Bore size – 101.60mm
Stroke – 88.39mm
Engine code – 350
Make - Chevrolet
Models – Bel Air, Bonneville, C Series, Camaro, Corvette, Firebird, Impala, K Series, Lemans, Suburban, Tahoe etc (1967 – 2003)

APPLICATION 9:
Engine – Small block 400 6.6L OHV 16v
Capacity – 400ci
Cylinders - V8
Bore size – 104.77mm
Stroke – 95.25mm
Engine code – 400
Make - Chevrolet
Models – Bel Air, Chevelle, El Camino, Impala, K Series, Monte Carlo etc (1970 – 1980)


APPLICATION 10:
Engine – 4.8L LR4 Gen III & LY2 Gen IV
Capacity – 4817cc
Cylinders - V8
Bore size – 96.00mm
Stroke – 83.00mm
Engine code – Vortec 4800
Make - Chevrolet
Models – Silverado, Tahoe, Yukon (1999 on)

APPLICATION 11:
Engine – 5.3L Gen III & IV OHV 16v
Capacity – 5325cc
Cylinders - V8
Bore size – 96.00mm
Stroke – 92.00mm
Engine code – Vortec 5300
Make - Chevrolet
Models – Avalanche, Express, Silverado, SSR, Suburban, Tahoe, Trailblazer + more (1999 on)

APPLICATION 12:
Engine – 5.7L OHV 16v
Capacity – 5665cc
Cylinders - V8
Bore size – 99.00mm
Stroke – 92.00mm
Engine code – LS1 & LS6 Gen III
Make - Chevrolet
Models – Camaro, Corvette, GTO (1997 – 2005)

APPLICATION 13:
Engine – 6.0L LS2 Gen III/IV OHV 16v
Capacity – 5967cc
Cylinders - V8
Bore size – 101.60mm
Stroke – 92.00mm
Engine code – Vortec 6000
Make - Chevrolet
Models – Corvette, Express, GTO, Hummer H2, Silverado, SSR, Suburban, Trailblazer, Yukon (1999 – 2009)

APPLICATION 14:
Engine – 6.2L Gen IV LS3, L99 OHV 16v
Capacity – 6162cc
Cylinders - V8
Bore size – 103.00mm
Stroke – 92.00mm
Engine code – Vortec 6200
Make - Chevrolet
Models – Camaro, Corvette, G8, Hummer H2, Silverado, Tahoe, Yukon (2007 on)

APPLICATION 15:
Engine – 5.7L OHV 16v
Capacity – 5665cc
Cylinders – V8
Bore size – 99.00mm
Stroke – 92.00mm
Engine code – LS1 Gen III
Make – Holden
Models – Adventra VYII, VZ, Commodore VT, VX, VY, VYII, VZ, Crewman VYII, VZ, Caprice/Statesman WH, WHII, WK, WL, Monaro V2, VZ, Ute VU, VY, VYII, VZ, HSV Avalanche, Clubsport VT, XV, Y Series, Coupe V2, VZ, Grange WH, WHII, WK, GTS VX, Y Series, Maloo VU, Y Series, Senator VT, VX, Y Series

APPLICATION 17:
Engine – 6.0L OHV 16v
Capacity – 5967cc
Cylinders – V8
Bore size – 101.60mm
Stroke – 92.00mm
Engine code – L76, 98 Gen IV
Make – Holden
Models – Caprice WL, WM, WMII, Commodore VE, VE II, VZ, Crewman VZ, Statesman WL, WM, Ute VE, VEII, VZ

APPLICATION 18:
Engine – 6.0L OHV 16v
Capacity – 5967cc
Cylinders – V8
Bore size – 101.60mm
Stroke – 92.00mm
Engine code – LS2
Make – Holden
Models – HSV E Series – Clubsport, Maloo, Senator, Z Series – Clubsport, Coupe, Maloo, Senator, Grange WL, WM

APPLICATION 19:
Engine – 6.2L OHV 16v
Capacity – 6162cc
Cylinders – V8
Bore size – 103.25mm
Stroke – 92.00mm
Engine code – LS3
Make – Holden
Models – HSV E Series – Clubsport, GTS, Maloo, Senator, Grange WM

APPLICATION 20:
Engine – 5.0L OHV 16v
Capacity – 307ci
Cylinders – V8
Bore size – 98.43mm
Stroke – 82.55mm
Engine code – Chevrolet 307
Make – Holden
Models – Brougham, Kingswood, Monaro, Premier HK, HT

APPLICATION 21:
Engine – 5.7L OHV 16v
Capacity – 350ci
Cylinders – V8
Bore size – 101.60mm
Stroke – 88.39mm
Engine code – Chevrolet 350
Make – Holden
Models – Brougham, Kingswood, Monaro HG, HQ, HT, Statesman HQ
