30-2010 - Air Temp Sensor Kit

• Accuracy: < 1.5°C / 2.7°F
• Operating Temp: -40C to 135C / -40F to 275F
• Resistive Range (Ω): See Table
• Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
• Sensor Body Material: Brass
• Thread: 3/8" NPT
• Hex Size: 3/4"
• Installation Torque: 20Nm / 15 ft-lbs
• Weight: 33.3g
• Electrical Termination: Weatherproof connector. Includes Mating Connector, Pins & Wire Seals

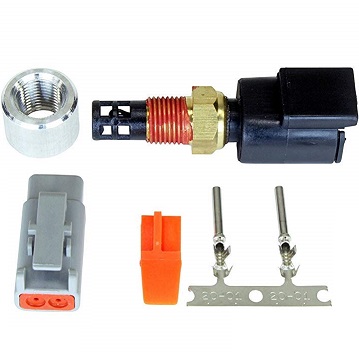

• Includes: Air Temp Sensor, 3/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals

30-2014: Air Temp Sensor with 1/8" NPT Male Thread, High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins
30-2010: Air Temp Sensor with 3/8' NPT Male Thread, Aluminum Bung, Connector & Pins
