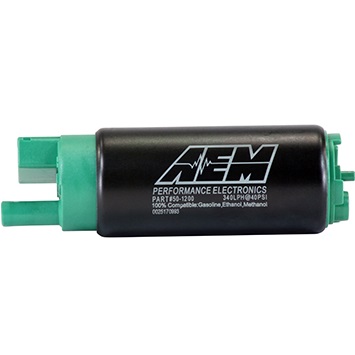

The AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump is designed for in-tank mounting on high performance naturally aspirated and forced induction vehicles. It features a compact 39mm diameter that fits most applications and an offset inlet design that eases installation.

The 340LPH E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre filter, internal fuel hose, clamps, end cap and rubber buffer sleeve. Every AEM 340LPH E85-Compatible Fuel Pump is tested to flow 340 lph at 40 PSI before it is packaged for sale.

TECHNICAL SPECS:
Weight: 12.5oz (354grams)
Outside Diameter: 39mm OD
External Materials: Black plated steel with laser etching, green end caps
Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
Outlet Fitting: 8 mm hose clamp. Offset
PRV Activation: 80 PSI
Impeller Design: Single Scroll Ceramic Turbine


VOLTAGE SPECS:
Connector Terminal: 6 mm Spade (pos/neg)
Min Voltage Input: 6 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 12 amps (13.5v)
Current Draw (80 psi): 15 amps (13.5v)
Fuse: 20 amps (13.5v)

* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
